Porcelain Tile System for Rooftop Terraces

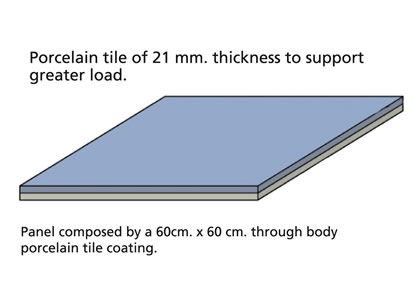

This panel is composed by a 60 cm × 60 cm through body porcelain tile coating, offering an unbeatable open air performance. Its 21 mm thickness, with adjustable polypropylene pedestals allow a 15 to 15 cm height span and a 3 mm separation in between panels, encouraging water drainage to occur.
This system creates a totally flat pavement, hiding the drain slope underneath.
The modular panels that make up this system rely on raised pedestals which keep them above the waterproof layer, creating a span of circulating air which maintains the waterproof layer dry and fresh. The placement of these panels is a dry and simple work, reducing labor costs to minimum.
